Multi-terminal Special-shaped End-Sealing Machine（LTCC）（CommonModeChoke）

Contact your account manager for details

Due to the small differences in different specifications, the detailed data of the equipment can be consulted by email to our account manager

Category:

Automatic stand-alone equipment

E-mail: gdlx@lixingmac.com

Hotline: +8618948669375

WeChat: lixing18948669375

Consult now

Product Name： Multi-terminal Automatic End Sealing Machine (LTCC Type)

Product nickname：Multi-terminal Automatic Dipping Machine、Multi-terminal Automatic End Silvering Machine、Multi-terminal Automatic End Coating Machine

Model number： LXDDZ

Machine Dimensions： Details are shown in the table below

Equipment Weight： Details are shown in the table below

Applicable Specifications：Contact your account manager for details

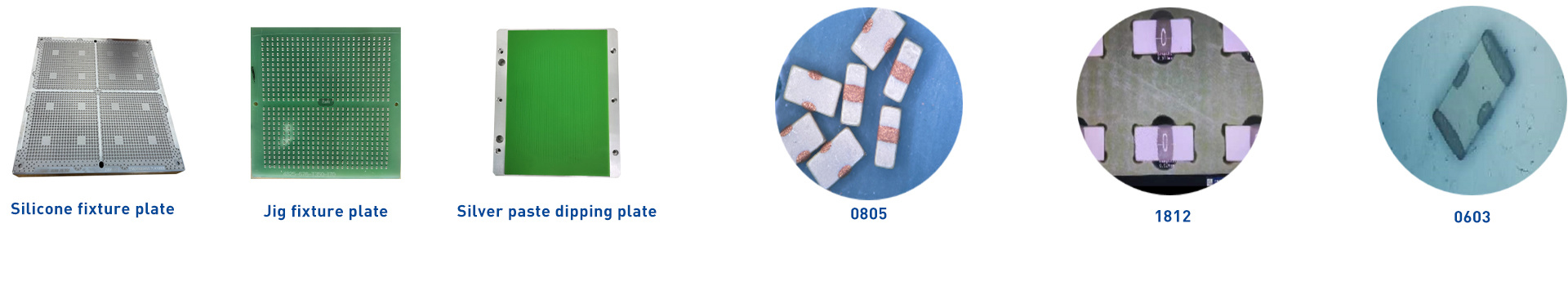

Pallet & Supplies： （SUS）Stainless Steel series 、Thick Silicone series 、Thin Silicone series 、（JIG）Fiberglass plate series

Application Products

Our equipment is capable of performing a wide range of electronic component manufacturing processes, including MLCG, MBG, NTC, Filter, Fuse and LTCC.

MLCC

MLCI

NTC

Filter

Fuse

LTCC

Description
Region 2
Region 1

- Commodity name: Multi-terminal Special-shaped End-Sealing Machine（LTCC）（CommonModeChoke）
Contact your account manager for details

Technical specifications: Applicable pallet size: 152X152mm

Applicable product specifications: Metric 1005-2225

Feeding rate: 97%

Continuous single board efficiency ≤30S/board

Equipment size: 120014502100 Number of holes: Metric 1005-2560, 2012-1024, 3216-676

Silver paste accuracy: ≤±0.01mm

Scraper blade flatness: ≤±0.005mm

Parallelism of glue plate and carrier: ≤±0.005mm

Loading method: manual basket loading and unloading
Product Name： Multi-terminal Automatic End Sealing Machine (LTCC Type)

Product nickname：Multi-terminal Automatic Dipping Machine、Multi-terminal Automatic End Silvering Machine、Multi-terminal Automatic End Coating Machine

Model number： LXDDZ

Machine Dimensions： Details are shown in the table below

Equipment Weight： Details are shown in the table below

Applicable Specifications：Contact your account manager for details

Pallet & Supplies： （SUS）Stainless Steel series 、Thick Silicone series 、Thin Silicone series 、（JIG）Fiberglass plate series
Due to the small differences in different specifications, the detailed data of the equipment can be consulted by email to our account manager
